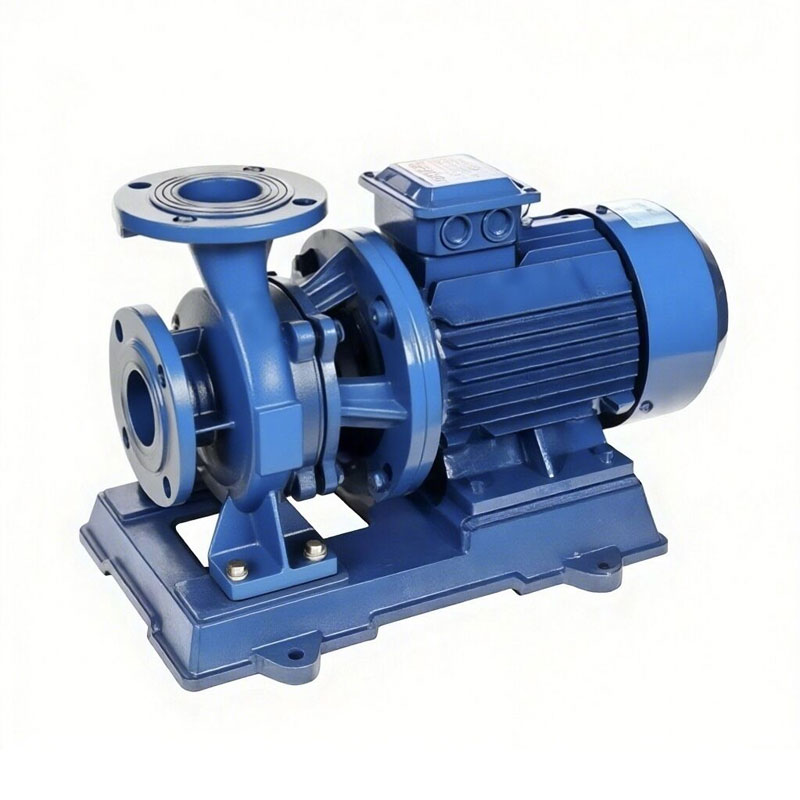

משאבת צינור אופקי ברזל יצוק

שנחאי כתרי משאבות ייצור ושות 'בע"מ מצטיין בעיצוב, ייצור ומכירה של משאבות מים שונות. משאבת הצינור האופקי של הברזל יצוק שלנו עומדת בסטנדרטים של ISO, ומבטיחה ביצועים ואמינות גבוהים. סדרה זו מציעה הנדסה חזקה, מה שהופך אותה לבחירה אידיאלית עבור פתרונות משאבת מים יעילים ואמינים.

שלח שאילתה

תיאור מוצר

Shanghai Crowns Pump Manufacturing Co., Ltd. offers top-quality water pumps. Our cast iron horizontal pipeline pump ISW series pipe centrifugal pump, designed per ISO2858 and JB/T53058-93 standards, saves energy and transfers clear water and similar liquids, suitable for various water supply needs.

● ISW: Up to 80ºC for industrial/municipal use.
● IRW: Up to 120ºC for hot water.
● GRW: Up to 240ºC for high-temp applications.
● IHW: For corrosive liquids, -20ºC to 120ºC.

Trust Crowns Pump for reliable water pump solutions.

Work Conditions

1. Inlet pressure ≤1.0Mpa, or pump system maximum work pressure ≤1.6Mpa, pump inlet pressure + pump head≤1.6Mpa, pump static pressure test pressure: 2.5Mpa. The pump system work pressure is greater than 1.6Mpa, you shall specify in the order.
2. Ambient temperature<40ºC, relative humidity<95%.
3. The solid particle volume of the media shall not exceed 0.1%, particle diameter <0.2mm.

Main Specification

Model	Power		Flow	Head	Pipe size
Model	kw	Hp	m3/h	m	Inch	mm
40-125	1.1	1.5	6.3	20	1.5	40
40-125A	0.75	1	5.6	16	1.5	40
40-160	2.2	3	6.3	32	1.5	40
40-160A	1.5	2	5.9	28	1.5	40
40-160B	1.1	1.5	5.5	24	1.5	40
40-200	4	5.5	6.3	50	1.5	40
40-200A	3	4	5.9	44	1.5	40
40-200B	2.2	3	3.7	38	1.5	40
40-250	7.5	10	6.3	80	1.5	40
40-250A	5.5	7.5	5.9	70	1.5	40
40-250B	4	5.5	5.5	60	1.5	40
40-125(I)	1.5	2	12.5	20	1.5	40
40-125(I)A	1.1	1.5	11	16	1.5	40
40-160(I)	3	4	12.5	32	1.5	40
40-160(I)A	2.2	3	11.7	28	1.5	40
40-200(I)B	3	4	10.6	36	1.5	40
40-250(I)	11	15	12.5	80	1.5	40
40-250(I)A	7.5	10	11.6	70	1.5	40
50-100	1.1	1.5	12.5	12.5	2	50
50-125	1.5	2	12.5	20	2	50
50-125A	1.1	1.5	11	16	2	50
50-160	3	4	12.5	32	2	50
50-160A	2.2	3	11.7	28	2	50
50-160B	1.5	2	10.4	22	2	50
50-200	5.5	7.5	12.5	50	2	50
50-200A	4	5.5	11.7	44	2	50
50-200B	3	4	10.6	36	2	50
50-250	11	15	12.5	80	2	50
50-250A	7.5	10	11.6	70	2	50
50-100(I)	1.5	2	25	12.5	2	50
50-100(I)A	1.1	1.5	22.3	10	2	50
50-125(I)	3	4	25	20	2	50
50-125(I)A	2.2	3	22.3	16	2	50
50-160(I)	4	5.5	25	32	2	50
50-160(I)A	4	5.5	23.4	28	2	50
50-160(I)B	3	4	21.6	24	2	50
50-200(I)	7.5	10	25	50	2	50
50-200(I)A	7.5	10	23.5	44	2	50
50-200(I)B	5.5	7.5	21.8	38	2	50
50-250(I)	15	20	25	80	2	50
50-250(I)A	11	15	23.4	70	2	50
50-250(I)B	11	15	21.6	60	2	50
50-315	30	40	25	125	2	50
65-100	1.5	2	25	12.5	2.5	65
65-100A	1.1	1.5	22.3	10	2.5	65
65-125	3	4	25	20	2.5	65
65-125A	2.2	3	22.3	16	2.5	65
65-160	4	5.5	25	32	2.5	65
65-160A	4	5.5	23.4	28	2.5	65
65-160B	3	4	21.6	24	2.5	65
65-200	7.5	10	25	50	2.5	65
65-200A	7.5	10	23.5	44	2.5	65
65-200B	5.5	7.5	21.8	38	2.5	65
65-250	15	20	25	80	2.5	65
65-250A	11	15	23.4	70	2.5	65
65-250B	11	15	21.6	60	2.5	65
65-315A	22	30	23.7	113	2.5	65
65-315B	18.5	25	22.5	101	2.5	65
65-100(I)	3	4	50	12.5	2.5	65
65-100(I)A	2.2	3	44.7	10	2.5	65
65-125(I)	5.5	7.5	50	20	2.5	65
65-125(I)A	4	5.5	45	16	2.5	65
65-160(I)	7.5	10	50	32	2.5	65
65-160(I)A	7.5	10	46.7	28	2.5	65
65-160(I)B	5.5	7.5	43.4	24	2.5	65
65-200(I)	15	20	50	50	2.5	65
65-200(I)A	11	15	47	44	2.5	65
65-200(I)B	7.5	10	43.3	38	2.5	65
65-250(I)	22	30	50	80	2.5	65
65-250(I)A	18.5	25	46.7	70	2.5	65
65-250(I)B	15	20	43.3	60	2.5	65
65-315(I)A	30	40	56.5	110	2.5	65
80-100	3	4	50	12.5	3	80
80-100A	2.2	3	44.7	10	3	80
80-125	5.5	7.5	50	20	3	80
80-125A	4	5.5	45	16	3	80
80-160	7.5	10	50	32	3	80
80-160A	7.5	10	46.7	28	3	80
80-160B	5.5	7.5	43.4	24	3	80
80-200	15	20	50	50	3	80
80-200A	11	15	47	44	3	80
80-200B	7.5	10	43.3	38	3	80
80-250	22	30	50	80	3	80
80-250A	18.5	25	46.7	70	3	80
80-250B	15	20	43.3	60	3	80
80-315	37	50	50	125	3	80
80-315A	30	40	46.5	110	3	80
80-315B	30	40	44.5	100	3	80
80-350	55	75	50	150	3	80
80-350A	45	60	44.5	142	3	80
80-350B	37	50	41	135	3	80
80-100(I)	5.5	7.5	100	12.5	3	80
80-100(I)A	4	5.5	89	10	3	80
80-125(I)	11	15	100	20	3	80
80-125(I)A	7.5	10	89	16	3	80
80-160(I)	15	20	100	32	3	80
80-160(I)A	11	15	93.5	28	3	80
80-200(I)	22	30	100	50	3	80
80-200(I)A	18.5	25	93.5	44	3	80
80-200(I)B	15	20	87	38	3	80
80-250(I)	37	50	100	80	3	80
80-250(I)A	30	40	93.5	70	3	80
80-250(I)B	30	40	87	60	3	80
80-315(I)	75	100	100	125	3	80
80-315(I)A	55	75	95	113	3	80
100-100	5.5	7.5	100	12.5	4	100
100-100A	4	5.5	89	10	4	100
100-125	11	15	100	20	4	100
100-125A	7.5	10	89	16	4	100
100-160	15	20	100	32	4	100
100-160A	11	15	93.5	28	4	100
100-200	22	30	100	50	4	100
100-200A	18.5	25	93.5	44	4	100
100-200B	15	20	87	38	4	100
100-250	37	50	100	80	4	100
100-250A	30	40	93.5	70	4	100
100-250B	30	40	87	60	4	100
100-315	75	100	100	125	4	100
100-315A	55	75	95	113	4	100
100-315B	45	60	90	101	4	100
100-350	90	120	100	150	4	100
100-350A	75	100	88	142	4	100
100-350B	55	75	80	135	4	100
100-100(I)	11	15	160	12.5	4	100
100-125(I)	15	20	160	20	4	100
100-125(I)A	11	15	140	17	4	100
100-160(I)	22	30	160	32	4	100
100-160(I)A	18.5	25	140	28	4	100
100-200(I)	37	50	160	50	4	100
100-200(I)A	30	40	140	45	4	100
100-200(I)B	22	30	100	40	4	100
100-250(I)	55	75	160	80	4	100
100-250(I)A	45	60	140	72	4	100
100-250(I)B	37	50	100	65	4	100
125-100	11	15	160	12.5	5	125
125-100A	7.5	10	143	10	5	125
125-125	15	20	160	20	5	125
125-125A	11	15	143	16	5	125
125-160A	18.5	25	150	28	5	125
125-160B	15	20	138	24	5	125
125-200	37	50	160	50	5	125
125-200A	30	40	150	44	5	125
125-200B	22	30	138	37.5	5	125
125-250	55	75	160	80	5	125
150-125	11	15	160	20	6	150
150-160	22	30	160	32	6	150
150-160A	18.5	25	150	28	6	150
150-160B	15	20	140	24	6	150
150-200	37	50	160	50	6	150
150-200A	30	40	150	44	6	150
150-250	75	100	160	80	6	150
150-250A	55	75	150	70	6	150
150-250B	45	60	138	60	6	150
150-350	110	150	160	150	6	150
150-350A	90	120	150	142	6	150
150-350B	75	100	140	135	6	150
150-250(I)	75	100	200	80	6	150
150-250(I)A	55	75	187	70	6	150
150-250(I)B	45	60	173	60	6	150
150-315(I)	110	150	200	125	6	150
150-315(I)A	90	120	187	110	6	150
150-315(I)B	75	100	173	95	6	150
125-200B	22	30	138	37.5	5	125
125-250A	45	60	150	70	5	125
125-250B	37	50	138	60	5	125
125-315	90	120	160	125	5	125
125-315A	75	100	150	110	5	125
125-315B	75	100	143	100	5	125
125-315C	55	75	134	88	5	125
150-125A	7.5	10	150	16	6	150
150-200-15	15	20	160	12.5	6	150
150-200A	11	15	147	10	6	150
150-250	75	100	160	80	6	150
150-250	18.5	25	160	20	6	150
150-250A	15	20	147	17	6	150
150-250B	11	15	134	14	6	150
150-315	30	40	160	32	6	150
150-315A	22	30	150	28	6	150
150-315B	18.5	25	138	24	6	150
150-400	45	60	160	50	6	150
150-400A	37	50	187	44	6	150
150-400B	30	40	174	38	6	150
150-315(B)	75	100	173	95	6	150
200-200	15	20	200	12.5	8	200
200-200A	11	15	179	10	8	200
200-250	18.5	25	200	20	8	200
200-250A	15	20	184.4	17	8	200
200-250B	11	15	179	14	8	200
200-315	30	40	200	32	8	200
200-315A	22	30	187	28	8	200
200-315B	18.5	25	173	24	8	200
200-400	45	60	200	50	8	200
200-400A	37	50	187	44	8	200
200-400B	30	40	174	38	8	200
200-200(I)	22	30	400	12.5	8	200
200-250(I)	30	40	400	20	8	200
200-250(I)A	22	30	358	16	8	200
200-315(I)	55	75	400	32	8	200
200-315(I)A	45	60	374	28	8	200
200-315(I)B	37	50	346	24	8	200
200-400(I)	75	100	400	50	8	200
200-400(I)A	75	100	374	44	8	200
200-400(I)B	55	75	346	38	8	200
200-400(I)C	45	60	320	32	8	200
250-400	110	150	500	50	10	250

Feature and Application

● The horizontal structure ensures a compact design, requiring minimal installation space and presenting a sleek appearance.
● Inlet and Outlet Design: The inlet port is horizontal while the outlet port is positioned vertically upwards, simplifying piping layout and installation.
● The pump operates with high concentricity, providing stability and low noise.
● Equipped with a mechanical seal made from wear-resistant materials like silicon carbide, ensuring reliable, leak-free operation, with a shaft seal of cemented carbide.
● It is convenient for maintenance. It is not necessary to remove the pipe. Just remove the pump cover nut and the motor and transmission components for maintenance.

The cast iron horizontal pipeline pump ISW vertical pipeline centrifugal pump is designed for transporting clean water and other liquids with similar physical and chemical properties. It is suitable for the following applications:

● Industrial Water Supply
● Urban Water Supply and Drainage
● High-Rise Building Water Pressure Boosting
● Fire-Fighting Pressure Boosting
● Garden Irrigation
● HVAC Refrigeration Circulation
● Bathroom Hot and Cold Water Circulation Pressure Boosting
● Long-Distance Transportation
● Equipment Integration
